Dial On Demand Routing or DDR provides a redundant link or network connection over a Public Switched Telephone Networks or PSTN. This could as simple as an Asynchronous dial up modem connection to a more reliable connection such as ISDN. Basically its a connection in waiting. Waiting for the failure of the primary Topology such as MPLS, ATM, or Frame Relay for example. It can also provide a back door if you will or Out Of Band Management.
Some of the more common Dial On Demand Routing options
- Asynchronous Modems with a dedicated POTS line.
- Wireless or Cellular device such as Raven or CradlePoint.
- Dedicated ISDN lines.
ISDN
Basic Rate Interface or BRI consist of 2B + D Integrated Services Digital Network lines primarily used as subscriber lines for voice capable telephone service. The BRI interface configuration provides 2 bearer channels called the B channels at 64 kbit/s each and 1 data channel refereed to as the D channel at 16 kbit/s. The B channels are used for voice or data, and the D channel is used for signalling. The 2 B channels can be combined or aggregated together providing a total data rate of 128 kbit/s.
Common DDR Scenarios
- The Primary WAN link is a full time DDR
- The Primary WAN link is not DDR, and DDR is being utilized as the backup.
Dialer Maps vs Dialer Profiles
R1
- Ethernet0/0 = 172.18.1.1 255.255.255.0
- WAN IP = 10.0.1.1 255.255.255.252
- WAN Layer 2 Frame
- WAN DLCI = 101
- WAN Layer 2 = Frame Relay
- Dialer0 IP = 10.1.1.1 255.255.255.252
- BRI0 Layer 2 = PPP
- ISDN Switch Type = Basic NI
R2
- Ethernet0/0 = 172.18.2.1 255.255.255.0
- WAN IP = 10.0.2.1 255.255.255.252
- WAN Layer 2 Frame
- WAN DLCI = 102
- WAN Layer 2 = Frame Relay
- Dialer0 IP = 10.2.2.1 255.255.255.252
- BRI0 Layer 2 = PPP
- ISDN Switch Type = Basic NI

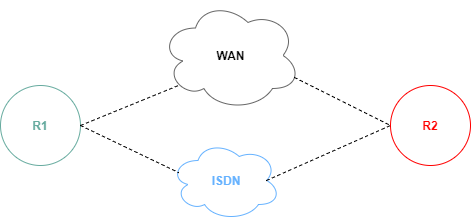

The Backup DDR Topology
R1#config t
R1(config)#
R1(config)#isdn switch-type basic-ni
R1(config)#exit
R1#
R1#config t
R1(config)#
R1(config)#controller t1 0/0/0
R1(config-controller)#cablelength long 0db
R1(config-controller)#channel-group 0 timeslots 1-24
R1(config-controller)#exit
R1(config)#exit
R1#
R1#config t
R1(config)#
R1(config)#interface s0/0.1 point-to-point
R1(config-if)#description PVC to R2
R1(config-if)#ip address 10.0.1.1 255.255.255.252
R1(config-if)#frame-relay interface-dlci 101
R1(config-if)#backup interface Dialer0
R1(config-if)#exit
R1(config)#exit
R1#
R1#config t
R1(config)#
R1(config)#interface ethernet0/0
R1(config-if)#ip address 172.18.1.1 255.255.255.0
R1(config-if)#speed 100
R1(config-if)#duplex full
R1(config-if)#exit
R1(config)#exit
R1#
Configure ISDN interface on Router R1 and add it to the dialer pool
R1#config t
R1(config)#
R1(config)#interface BRI0/0
R1(config-if)#encapsulation ppp
R1(config-if)#dialer pool-member 1
R1(config-if)#isdn switch-type basic-ni
R1(config-if)#ppp authentication chap
R1(config-if)#ppp multilink
R1(config-if)#exit
R1(config)#exit
R1#
Define some interesting traffic on Router R1 with a simple dialer list
R1#config t
R1(config)#
R1(config)#dialer-list 1 protocol ip permit
R1(config)#exit
R1#
Configure the Dailer Interface and remote name on Router R1
R1#config t
R1(config)#
R1(config)#interface dialer0
R1(config-if)#ip 10.1.1.1 255.255.255.252
R1(config-if)#encapsulation ppp
R1(config-if)#dialer remote-name R2
R1(config-if)#dialer pool 1
R1(config-if)#dialer idle-timeout 900
R1(config-if)#dialer max-call 4096
R1(config-if)#dialer-group 1
R1(config-if)#ppp authentication chap
R1(config-if)#ppp multilink
R1(config)#exit
R1#
Router R2’s Configuration
R2#config t
R2(config)#
R2(config)#isdn switch-type basic-ni
R2(config)#exit
R2#
R2#config t
R2(config)#
R2(config)#controller t1 0/0/0
R2(config-controller)#cablelength long 0db
R2(config-controller)#channel-group 0 timeslots 1-24
R2(config-controller)#exit
R2(config)#exit
R2#
R2#config t
R2(config)#
R2(config)#interface s0/0.1 point-to-point
R2(config-if)#description PVC to R1
R2(config-if)#ip address 10.0.2.1 255.255.255.252
R2(config-if)#frame-relay interface-dlci 101
R2(config-if)#backup interface Dialer0
R2(config-if)#exit
R2(config)#exit
R2#
R2#config t
R2(config)#
R2(config)#interface ethernet0/0
R2(config-if)#ip address 172.18.2.1 255.255.255.0
R2(config-if)#speed 100
R2(config-if)#duplex full
R2(config-if)#exit
R2(config)#exit
R2#
Configure ISDN interface on Router R2 and add it to the dialer pool
R2#config t
R2(config)#
R2(config)#interface BRI0/0
R2(config-if)#encapsulation ppp
R2(config-if)#dialer pool-member 1
R2(config-if)#isdn switch-type basic-ni
R2(config-if)#ppp authentication chap
R2(config-if)#ppp multilink
R2(config-if)#exit
R2(config)#exit
R2#
Define some interesting traffic on Router R2 with a simple dialer list
R2#config t
R2(config)#
R2(config)#dialer-list 1 protocol ip permit
R2(config)#exit
R2#
Configure the Dailer Interface and remote name on Router R2
R2#config t
R2(config)#
R2(config)#interface dialer0
R2(config-if)#ip 10.2.2.1 255.255.255.252
R2(config-if)#encapsulation ppp
R2(config-if)#dialer remote-name R1
R2(config-if)#dialer pool 1
R2(config-if)#dialer idle-timeout 900
R2(config-if)#dialer max-call 4096
R2(config-if)#dialer-group 1
R2(config-if)#ppp authentication chap
R2(config-if)#ppp multilink
R2(config)#exit
R2#
There is an abundance of really good information out there on the Web regarding Dial On Demand routing, but Cisco probably has the best list of example configurations that I have come across with multiple combinations and scenarios surrounding DDR Routing.
